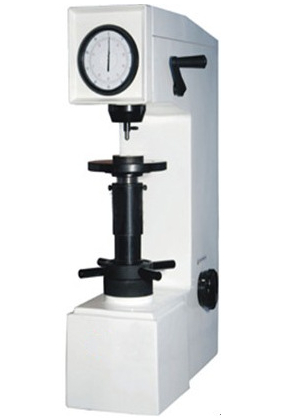

HR-150A型手動洛氏硬度計

HR-150A type manual Rockwell hardness







產品簡介/ Product introduction：

HR-150A型手動洛氏硬度計外形美觀,操作方便,是一種普及型的洛氏硬度試驗機.機械手動測試,無電器裝置,可進行黑色金屬和有色金屬的洛氏硬度測定,施加試驗力的速度由緩沖器來調節，試驗力的變換采用變荷手輪的旋轉而獲得，因而具有操作簡便，性能穩定，使用廣泛等特點。廣泛適用于工廠車間和計量部門.

各項技術指標均符合：GB/T230-2002洛氏硬度計技術條件，參照ISO6508-2:1999國際標準。

Beautiful appearance, HC010-HR-150A manual Rockwell hardness tester is easy to operate, is a popular type Rockwell hardness testing machine. The mechanical and manual testing, no electronic device, capable of black metal and non-ferrous metal Rockwell hardness test, loading speed adjusted by buffer, test force transformation using variable charge handwheel the rotation was, therefore has the advantages of simple operation, stable performance, widely used characteristics. Widely used in factory workshop and Metrology Department.

All the technical indexes meet the technical conditions: GB/T230-2002 Rockwell hardness tester, according to ISO6508-2:1999 international standard.



適用范圍/ Scope of application：

洛氏硬度計適用于黑色金屬、有色金屬和非金屬材料的硬度測定。

適用范圍:淬火、表面淬火鋼,調質、退火鋼,冷硬鑄件,可鍛鑄件,硬質合金鋼,鋁合金,軸承鋼,硬化薄鋼板等。

Rockwell hardness meter is suitable for measuring the hardness of ferrous metal, nonferrous metal and nonmetal materials.

Scope of application: Hardened and surface hardened steel, quenching and tempering, annealing of steel, chilled casting, malleable cast iron, hard alloy steel, aluminum alloy, bearing steel, hardened steel sheet etc..



工作環境/ Work environment：

1、在室溫10~35℃的范圍內；

2、在穩固的基礎上水平安裝；

3、在無震動的環境中；

4、周圍無腐蝕性介質；

5、室內相對濕度不大于65%；

1, in the range of room temperature 10~35℃;

2, in a stable foundation for horizontal installation;

3, in the absence of vibration environment;

4,Non corrosive medium, around;

5, the indoor relative humidity of not more than 65%;



工作原理/ Working principle：

洛氏硬度的試驗原理：用金剛石圓錐體壓頭或一定直徑的鋼球壓頭，在初試驗力F0和主試驗力F1先后作用下，壓入試樣表面，保持一定時間，卸除主試驗力，保留初試驗力，此時的壓入深度為h1，在初試驗力作用下的壓入深度為h0，它們之差e(h1—h0)來表示壓痕深度的永久增量。每壓入0.002mm為一個洛氏硬度單位。（圖1）

洛氏硬度的計算公式：HRA、C=100—(e/0.002)

HRB=130—(e/0.002)

The test principle of Rockwell hardness: Ball indenter or certain diameter diamond cone pressure head, in the initial test force F0 and the main test force under the action of F1 successively, pressed into the surface of the sample, keep a certain time, removable main test force, retain the initial test force, indentation depth of the H1, in the initial check depth of press force is H0, and the difference between them (e H1 H0) to represent the permanent incremental indentation depth. Each press 0.002mm as a Rockwell hardness unit. (Figure 1)

The calculation formula of Rockwell hardness:

HRA, C=100 (e/0.002)

HRB=130 (e/0.002)





技術指標/Technical Index：

1.洛氏標尺:HRA, HRB, HRC, HRD, HRE, HRF,HRG,HRH,HRK

2.初試驗力(N):98.07(10kg)

3.總試驗力(N):588(60kg)，980(100kg)，1471(150kg)

4.硬度值讀數方式:表盤

5.試件允許最大高度:170mm

6.壓頭中心到機身距離:165mm

7.洛氏硬度計外形尺寸:520×240×700

8.洛氏硬度計重量:70

9.執行標準:GB/T230.2國家標準、JJG112檢定規程

10.硬度值范圍

HRA:20～88

HRB:20～100

HRC:20～70

1 Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK

2 initial test force (N): 98.07 (10kg)

3 of the total test force (N): 588 (60kg), 980 (100kg), 1471 (150kg)

4 Reading: Dial hardness value

5 specimen allow maximum height: 170mm

6 the center of pressure head to body distance: 165mm

7 Size Rockwell hardness (mm): 520 x 240 x 700

8 The weight ofRockwell hardness (kg): 70

9 standards: GB/T230.2 verification regulation of national standard, JJG112

10 hardness value

HRA:20 ~ 88

HRB:20 ~ 100

HRC:20 ~ 70



儀器精度指標/ Instrument accuracy specifications：

1、硬度計示值允許誤差（表1）



2、洛氏硬度試驗標尺、壓頭、試驗力及應用范圍（表2）

               注：洛氏硬度測試常用標尺為A、B、C三種



標準配置/ Standard configuration：

1、主機                                    1臺

2、金鋼石圓錐體壓頭     .                   1只

3、直徑1.5875mm鋼球壓頭                   1只

4、大平試臺     .                           1只

5、中平試臺     .                          1只

6、“V”型試臺                               1只

7、標準洛氏硬度塊：

       HRB                                1塊

       HRC                              高低各1塊

8、防塵塑料袋                               1只

9、隨機文件                               1套



客戶名錄：

詳見公司客戶名錄

、、、、、、



質量保證：

本公司保證交付的硬度計執行標準:金屬洛氏硬度實驗GB/T230-2002國家標準、JJG112-2003金屬洛氏硬度計檢定規程、JJG 152-1991金屬表面洛氏硬度計檢定規程，參照ISO6508-2:1999國際標準。精度達到合同要求。生產研發過程嚴格執行ISO9001:2000質量管理體系.

We guarantee delivery of performance standards hardness: Rockwell hardness test GB/T230-2002 metal national standards, JJG112-2003 Metal Rockwell hardness test procedures, JJG 152-1991 metal surface Rockwell hardness test procedures, referring to ISO6508-2:1999 international standards. Accuracy requirements of the contract. Production and development process strictly implement ISO9001: 2000 quality management system.
